Car in Limp Mode: What Causes It and How to Fix It
Why limp mode happens, what fault codes trigger it, and what to do when your car won’t accelerate past 3,000 rpm.
Limp mode is the engine management system’s way of protecting your car when it detects a fault serious enough to risk damage. Power is cut sharply — usually to around 3,000 rpm — acceleration feels sluggish, and the engine management light comes on. The car is still driveable, but only just.
The frustrating part is that limp mode is a symptom, not a cause. It tells you something is wrong but not what. Getting a proper diagnostic is the only way to find the fault and get the car running normally again.
What Exactly Is Limp Mode?
Limp mode (also called “failsafe mode” or “emergency mode”) is a built-in ECU protective function. When sensors report readings outside of safe parameters, the ECU cuts boost pressure, limits RPM, and in some cases reduces fuel delivery to prevent the engine from damaging itself further.
It’s designed to let you drive short distances — to get home or to a garage — without causing catastrophic engine damage.
Don’t ignore limp mode: While the car is driveable, continuing to drive on long journeys in limp mode risks worsening an already-developing fault. The sooner it’s diagnosed, the cheaper the repair is likely to be.
Common Causes of Limp Mode (and Their Fault Codes)
1. Turbo or Boost Pressure Fault
One of the most common triggers. When the ECU detects that actual boost pressure is significantly below the target (code P0299 — turbo underboost) or above the limit (P0234 — boost overboost), it enters limp mode to prevent turbo or engine damage.
Typical causes: boost hose leak, failed boost pressure sensor, stuck wastegate, or failing turbocharger. These range from minor (a loose hose clip at £50 to fix) to significant (turbo replacement at £800–£1,800).
2. DPF (Diesel Particulate Filter) Blockage
A severely blocked DPF triggers limp mode on many diesel vehicles. The exhaust can’t flow freely, backpressure builds, and the ECU cuts power to protect the engine. Often accompanied by the DPF warning light and codes relating to differential pressure across the filter.
Early-stage blockages may clear with a forced regeneration. More severe blockages need professional cleaning or filter replacement. Related codes: P2002, P2003, P244A.
3. EGR Valve Fault
A stuck or failed EGR valve can cause limp mode, particularly when the valve is stuck open (allowing exhaust gases to flood the intake). The engine loses power under load and the ECU detects an exhaust gas recirculation fault. Related codes: P0400–P0409 range.
4. Transmission Fault
On vehicles with automatic or DSG gearboxes, a gearbox fault can trigger drivetrain limp mode — often locking the car into a single gear (usually third or fourth). This is controlled by the TCM (transmission control module) rather than the engine ECU, and presents differently from engine-based limp mode.
Symptoms include inability to change gear, jolting during shifts, and a gearbox warning light. Get this diagnosed quickly — continued driving in gearbox limp mode can cause clutch pack damage on DSG units.
5. Throttle Body or Sensor Fault
The throttle position sensor (TPS) tells the ECU how far the throttle is open. If it reads incorrectly or fails, the ECU can’t manage fuelling correctly and defaults to limp mode. Related codes: P0120–P0124, P0220–P0229.
Throttle body faults may also include sticking actuators (particularly on electronic throttle bodies), which can cause hesitation, stalling, or power cuts before limp mode is triggered.
6. Fuel Pressure Fault
A failing fuel pump, blocked fuel filter, or faulty fuel pressure regulator can cause low fuel pressure at the injectors — the engine doesn’t get enough fuel, power drops dramatically, and limp mode activates. Related codes: P0087 (fuel pressure too low), P0088 (too high).
On common rail diesel engines, high-pressure fuel pump failures are a known failure point on certain makes and models. Fuel pressure faults left unaddressed can cause injector damage.

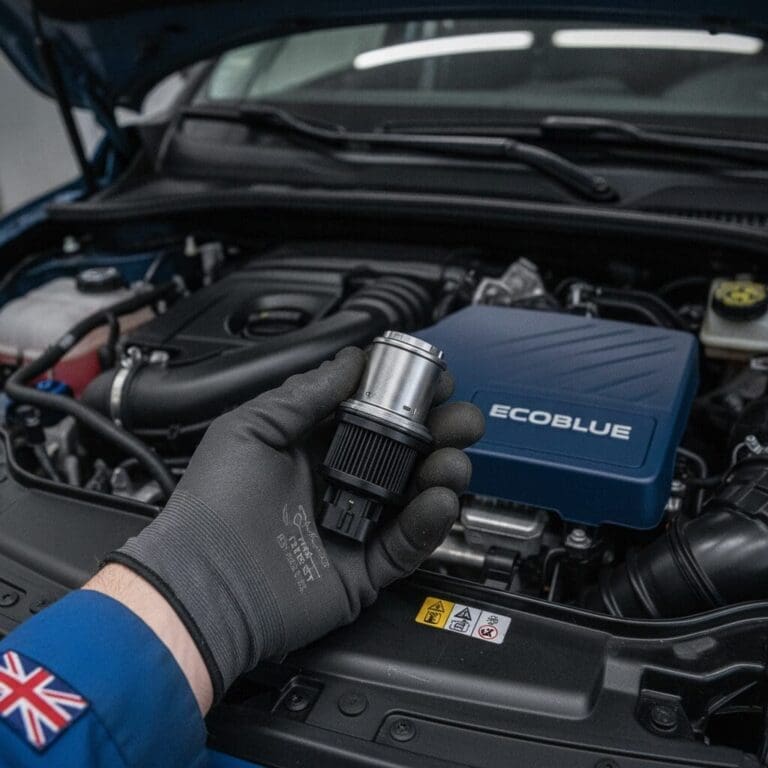

7. MAF (Mass Airflow) Sensor Fault
The MAF sensor measures incoming air volume. If it fails or reads inaccurately, the ECU can’t calculate the correct fuel-air ratio, leading to rich or lean running and triggering limp mode. Related codes: P0100–P0104.
MAF sensors can sometimes be cleaned with MAF cleaner spray rather than replaced, though severely damaged sensors need replacement (typically £60–£200 for the part).
8. AdBlue / SCR System Fault
On vehicles with AdBlue systems, a failed NOx sensor, low AdBlue level, or SCR catalyst fault will trigger limp mode — and on some vehicles, will prevent the engine from starting entirely once a countdown reaches zero. Related codes: P20EE, P2BA4, P20BA.
| Fault Area | Common Codes | Typical Severity |
|---|---|---|
| Turbo / Boost | P0299, P0234, P0238 | Medium — ranges from hose leak to turbo failure |
| DPF | P2002, P2003, P244A | Medium — cleaning or replacement needed |
| EGR | P0400–P0409 | Medium — cleaning or valve replacement |
| Gearbox / TCM | P0700–P0799 range | High — gearbox damage risk if ignored |
| Throttle Body | P0120–P0124, P0220 | Medium — sensor or actuator replacement |
| Fuel Pressure | P0087, P0088 | High — injector damage risk if ignored |
| MAF Sensor | P0100–P0104 | Low–Medium — often cleanable |
| AdBlue / SCR | P20EE, P2BA4, P20BA | High — can prevent engine start if ignored |
How to Get Out of Limp Mode
Step 1: Pull Over Safely and Check for Warning Lights
As soon as the car enters limp mode, reduce speed and pull over when safe to do so. Note which warning lights are on — the combination gives useful clues. Engine management light plus DPF light points toward exhaust faults. Engine light plus gearbox light suggests a transmission issue.
Step 2: Attempt a Reset (Only as a Temporary Measure)
On some vehicles, switching the engine off, waiting 30 seconds, and restarting will temporarily clear limp mode. This is useful for getting home — but it does not fix the fault. The code will return. Only use this to complete a short journey, not to avoid getting the car checked.
Step 3: Get a Full Diagnostic
A diagnostic scan reads the stored fault codes and gives the technician a starting point. On its own, a fault code is not a diagnosis — it narrows down the system that triggered the fault. A skilled technician will then test that system specifically: checking live data, testing sensors, and inspecting components.
Don’t just clear the codes: Clearing fault codes without fixing the underlying problem is a short-term fix. Limp mode will return — often sooner and with additional codes — and may have progressed to a more expensive repair by then.
Limp Mode After a Remap: Is the Map the Problem?
A common question from owners of remapped vehicles: “Is the remap causing limp mode?” In most cases, the answer is no. A remap doesn’t introduce new mechanical faults. If limp mode appears months after a remap, it’s almost always a physical fault — a boost hose splitting, a sensor failing, or a filter blocking — that has developed over time.
The exception is if limp mode appeared immediately after a remap, in which case the tuner should be contacted directly to review the calibration. A reputable remap will not set boost targets or fuel pressures that regularly push the ECU’s limits into limp-mode territory.
Limp Mode Repair Costs (UK)
The cost to fix limp mode depends entirely on the root cause:
- Boost hose leak: £80–£250 (hose or clamp replacement)
- MAF sensor replacement: £100–£250 (part + labour)
- EGR valve clean or replacement: £150–£800 depending on severity
- DPF forced regen or clean: £150–£600
- Fuel pressure sensor or regulator: £100–£350
- Throttle body replacement: £150–£500
- Turbo repair or replacement: £400–£1,800
- Gearbox repair: £500–£2,000+ (highly variable)
The diagnostic fee is usually £50–£100 and is well worth paying — it prevents spending money on the wrong repair.
Frequently Asked Questions
Can I drive in limp mode to get to a garage?
Yes, for short distances. Limp mode is designed to allow you to reach safety. Keep to lower speeds and avoid heavy throttle. Don’t use it as an excuse to delay getting the car checked — some faults (fuel pressure, turbo oil leaks) can worsen quickly with continued use.
Why does limp mode come and go intermittently?
Intermittent limp mode usually points to a sensor fault, loose connection, or a problem that only appears under load (like a boost hose that holds pressure at idle but leaks under boost). Intermittent faults are harder to diagnose but the fault code history will usually capture when the event occurred — providing useful clues.
Will limp mode clear itself after I restart the car?
In some cases, yes — a temporary sensor glitch can clear on restart. But if the underlying fault is still present, limp mode will return, usually within the same drive. A persistent return of limp mode after restart is a strong sign that the fault needs professional attention.
Can an MOT be passed while in limp mode?
No. An active engine management light is an automatic MOT failure. The fault triggering limp mode would also need to be resolved before emissions and performance tests could return acceptable results.
Is limp mode the same on all cars?
The principle is the same — protect the engine by limiting power — but the specific symptoms vary by vehicle. Some cars in limp mode lock into a single gear; others limit to 50 mph; others cut boost entirely. The fault codes and what triggers limp mode differ between manufacturers and ECU versions.
