Nissan Navara AdBlue Fault: Warning Messages, Fault Codes, and What to Do
Nissan Navara showing AdBlue warnings or fault codes? This guide covers the most common faults, what they mean, and how to get the right fix — not just a temporary workaround.
Why the Nissan Navara Gets AdBlue Faults
The Nissan Navara D23 (NP300) is one of the most popular double-cab pickup trucks in the UK, widely used for towing, trade work, and everyday driving. Navara models fitted with the 2.3-litre dCi diesel engine and SCR (selective catalytic reduction) system use AdBlue to reduce nitrogen oxide emissions — and that system can develop faults over time.
Nissan Navara AdBlue faults are more common than many owners expect. The vehicle’s use pattern plays a big role: Navarras doing frequent short journeys, towing heavy loads, or sitting idle for long periods put extra stress on the SCR system. When something fails, the dashboard warnings appear quickly and — if not addressed — a start-prevention countdown begins.
At Pro Remapping in Stoke-on-Trent, we work with Nissan Navara owners across Staffordshire and the Midlands. This guide covers the most common faults we see and what actually causes them.
Nissan Navara AdBlue Warning Messages
Navara drivers typically see a series of warnings that escalate in urgency. The exact wording can vary by model year, but the pattern is consistent:
| Warning Message | What It Means | Urgency |
|---|---|---|
| Add AdBlue | Fluid level is low — top up soon | Medium |
| AdBlue Range: XXX miles | Estimated range before lockout based on current level | Medium |
| Exhaust Fluid System Fault | Fault detected in SCR system — not just a level issue | High |
| Start Not Possible in X Starts | Countdown has begun — vehicle will lock out | Urgent |
| Vehicle Will Not Start | Lockout reached — needs professional intervention | Critical |
Common Nissan Navara AdBlue Fault Codes
When scanned with a professional diagnostic tool, Nissan Navara AdBlue faults typically produce one or more of the following codes. These point to specific areas of the SCR system that need attention.
P20E8 — AdBlue Dosing Performance
General dosing system fault. The system is not delivering the expected amount of AdBlue. Causes include pump failure, blocked injector, or a supply line issue. Needs component-level testing to confirm.
P204F — SCR Efficiency Below Threshold
The SCR catalyst is not reducing NOx emissions to the required level. Can be caused by low dosing, a degraded catalyst, or contaminated AdBlue that isn’t reacting properly with exhaust gases.
P207F — Reductant Quality
The system has detected that AdBlue quality is below the required urea concentration. Often triggered by poor quality fluid or a faulty quality/NOx sensor giving incorrect readings.
P2201 / P2203 — NOx Sensor
Upstream or downstream NOx sensor faults. The Navara uses these sensors to confirm AdBlue is working correctly. A failed sensor causes the system to flag an efficiency problem even when dosing is fine.
U029D — NOx Sensor Communication
Loss of communication with the NOx sensor. Can indicate a failed sensor, broken wiring, or a corroded connector — especially on older Navarras used in off-road or agricultural environments.
B2799 / P0600 — ECM/Immobiliser
These codes can appear when the Navara has entered lockout mode. They are secondary to the AdBlue fault and should resolve once the root cause is fixed and the system is properly reset.
Root Causes of Nissan Navara AdBlue Faults
Understanding what actually causes AdBlue faults on the Navara helps you make the right repair decision — rather than just replacing parts until the light goes out.
Short Journey Use
The SCR system only operates above a certain exhaust temperature. Navarras used mainly for short journeys never fully heat up, which leads to AdBlue crystallising in the injector tip and partial dosing. Over time this blocks the injector and triggers fault codes.

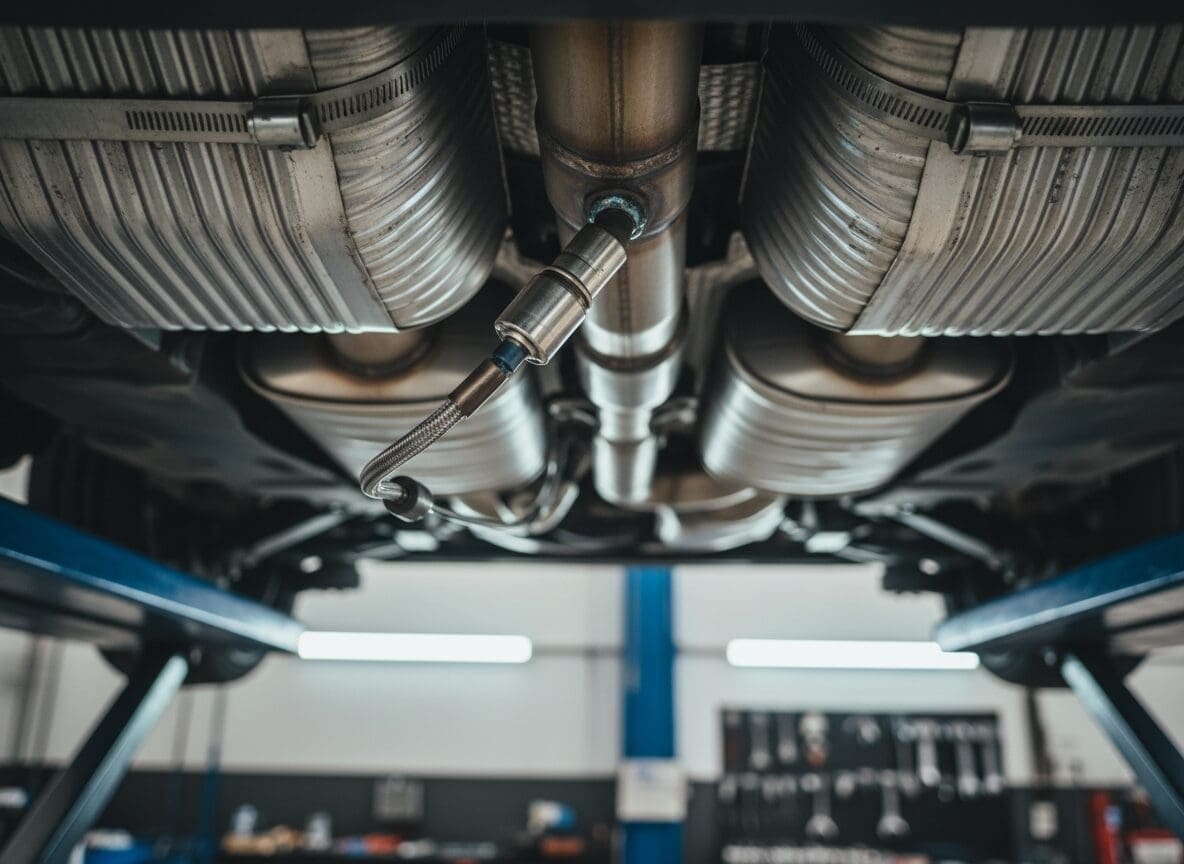

NOx Sensor Failure
Navara NOx sensors are a known weak point on the D23 platform. When the sensor fails, the ECU loses the ability to confirm AdBlue is reducing emissions correctly and triggers efficiency faults. Replacing the sensor is often the fix — but it’s worth confirming with a scope test before committing to the part.
AdBlue Injector Blockage
Crystallisation builds up inside the injector over time, particularly on short-run vehicles. A partially blocked injector means insufficient fluid reaches the catalyst, causing efficiency codes. In severe cases the injector tip can crack under the pressure differential, requiring replacement.
Dosing Pump Wear
The Navara’s AdBlue dosing pump drives fluid from the tank to the injector at precise pressure. Worn pumps lose output pressure, leading to under-dosing and eventually a complete dosing failure. Pump replacement resolves this but should be confirmed with pressure testing first.
AdBlue Quality or Contamination
Using incorrect AdBlue — or fluid that has been stored incorrectly and degraded — can trigger quality fault codes. The fluid must meet EN ISO 22241 specification and be used within its shelf life. Contamination from diesel or other fluids can also cause rapid catalyst degradation.
The Navara Lockout Explained
Unlike some older diesel vehicles, the Nissan Navara D23 has a hard programmed lockout built into its engine management system. Once a confirmed AdBlue system fault is detected and the countdown reaches zero, the vehicle will crank but not start.
The lockout cannot be bypassed by disconnecting the battery, clearing codes with a basic reader, or adding more AdBlue. It requires specialist diagnostic equipment capable of communicating with the Navara’s SCM (system control module) to unlock the restart cycle — alongside fixing the underlying fault.
Nissan Navara AdBlue Help in Stoke-on-Trent

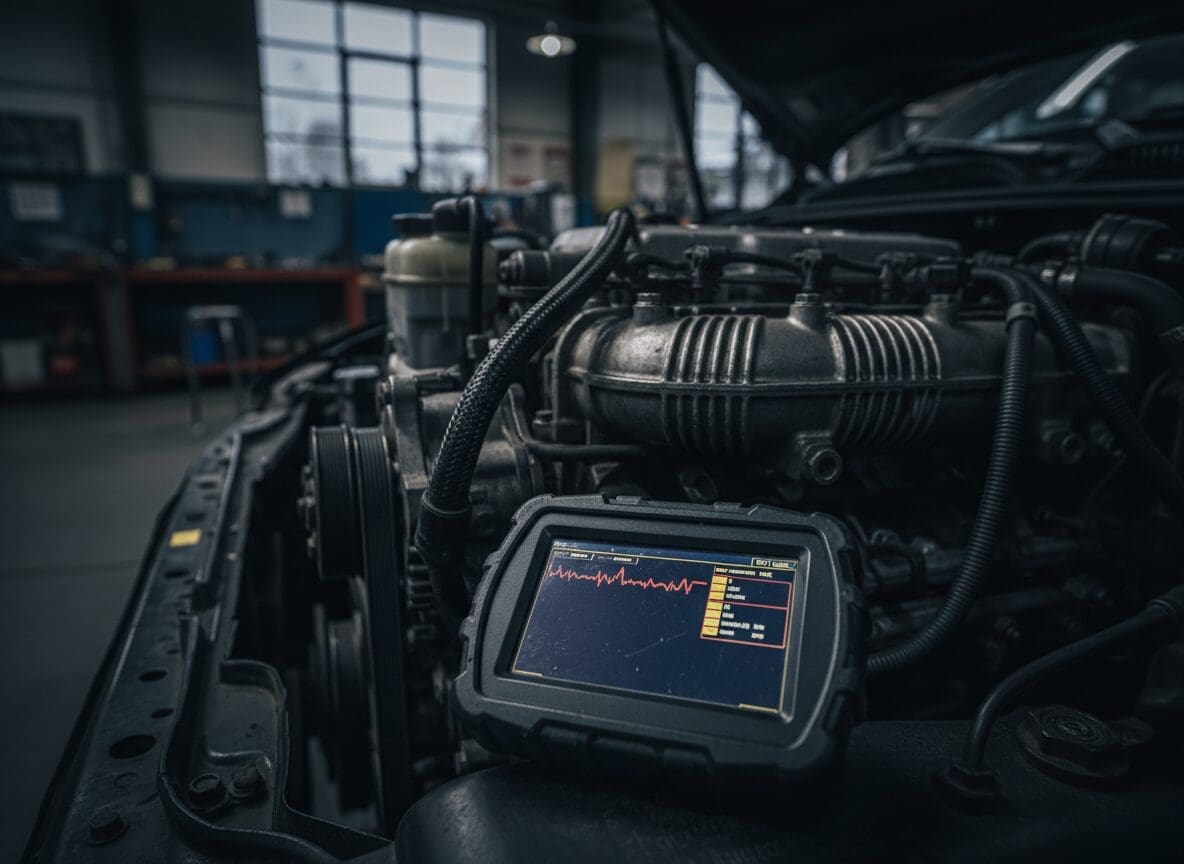

At Pro Remapping in Stoke-on-Trent, we carry diagnostic equipment that reads Nissan-specific fault codes in full, including the SCR system parameters that basic OBD scanners miss. We test the dosing pump pressure, check injector function, scope the NOx sensors, and identify exactly what’s causing the fault before recommending any parts.
We’re based in Hanley, Stoke-on-Trent, and we cover Nissan Navara owners across Staffordshire, Cheshire, and the wider Midlands. If your Navara is showing AdBlue warnings, contact us before the countdown reaches zero.
For drivers whose Navarras are used in conditions where the SCR system repeatedly fails, we can also discuss the relevant AdBlue solutions available and which may be appropriate for your specific situation and use case.
Navara Showing AdBlue Warnings?
Don’t wait for the lockout. Get your Nissan Navara properly diagnosed at Pro Remapping in Stoke-on-Trent — we’ll tell you exactly what’s failed and what it’ll take to fix it.
AdBlue Diagnostics
Stoke-on-Trent
No Guesswork
Frequently Asked Questions
How many miles can I drive with a Nissan Navara AdBlue warning?
That depends on whether it’s a level warning or a system fault. A level warning gives you until the tank runs dry — which could be hundreds of miles if you top up. A system fault warning means a countdown has started and the number of remaining starts is limited regardless of fluid level.
Can I top up the AdBlue myself on a Nissan Navara?
Yes — the AdBlue filler is typically near the fuel cap on the Navara. Use EN ISO 22241 specification fluid and don’t overfill. Topping up will only resolve a low-level warning; it won’t fix a system fault or reset a countdown caused by a component failure.
How much does a Nissan Navara AdBlue repair cost?
Diagnostics are charged separately. Repair cost depends on what’s failed — a NOx sensor replacement is typically a few hundred pounds, while a dosing pump or injector replacement may be higher. A proper diagnosis prevents unnecessary part replacements.
Is the Navara AdBlue fault covered by warranty?
If your Navara is within the manufacturer warranty period, some AdBlue system faults may be covered. Check with a Nissan dealer. For out-of-warranty vehicles, independent specialists like Pro Remapping typically offer more competitive diagnostic and repair rates.
Can Pro Remapping fix Nissan Navara AdBlue faults near Stoke-on-Trent?
Yes. We cover Stoke-on-Trent, Newcastle-under-Lyme, Stafford, Congleton, Leek, Uttoxeter, and surrounding areas. Contact us to discuss your fault and get booked in before the lockout occurs.
